Lavasan Private Villa

Residential project in Tehran/Lavasan, Iran, Islamic Republic of

More projects

Project category	Residential
Project type	New project
Year of completion	2019
Size of project(m²)	1.001 – 5.000
Number of KNX devices used	301 – 500
KNX brands	Show/hide ABB Stotz-Kontakt GmbH Busch - Jaeger Elektro GmbH Albrecht Jung GmbH & Co. KG BOSMER Schüco International KG Control4 Corporate Theben AG Schneider Electric GmbH c/o Merten
KNX Transmission media	Twisted pair IP
Man hours	501 – 1.000
Man power	6 – 10

Products that carry the KNX logo are a confirmation of high product quality, these products will communicate perfectly together and I didn't have to worry about working with inferior material.

Project characteristics

This diagram shows the level of energy efficiency, innovation and ease of use in the project. The main characteristic is displayed in the centre.

Applications used

The icons marked in blue are the applications used in this project via KNX.

Lighting

Heating, Ventilation & Air conditioning (HVAC)

Blind and Shutter Control

Security and Safety

Operation and Visualisation

Automation and Remote Access

Energy Management/Smart Metering

Other

Detailed description

Energy Efficiency

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation

Innovation

Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.

Ease of Use

By integrating KNX, we automatically experience a higher energy efficiency and comfort. Furthermore, by the possibility to use further devices, in order to make the usage of the project easier, we can look at further opportunity to even make the whole installation easier in usage.

Applications used

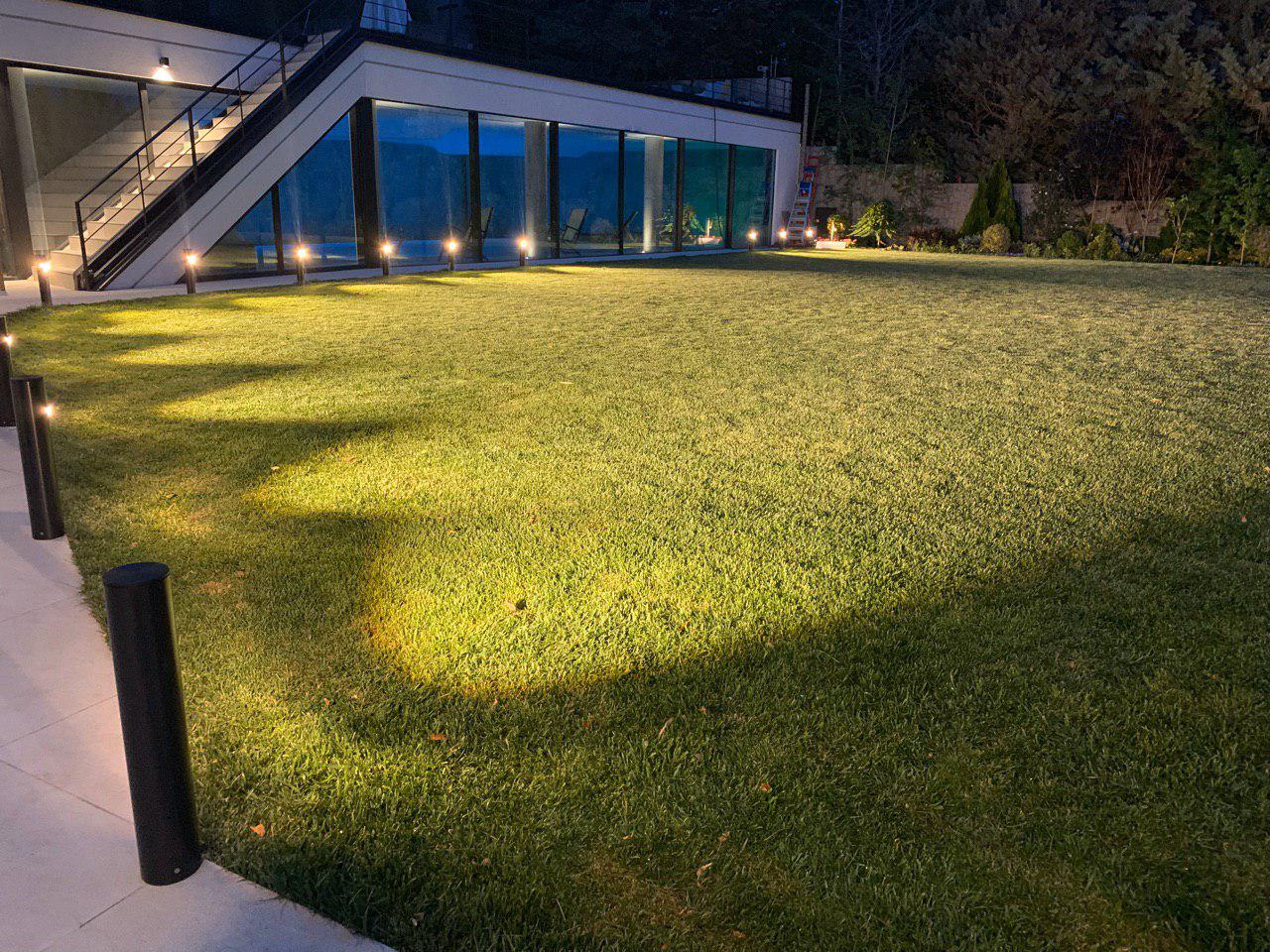

Lighting: Switching , Dimming , Timed Control , Automatic Occupancy Detection , Constant Light Control , Lighting Colour Control

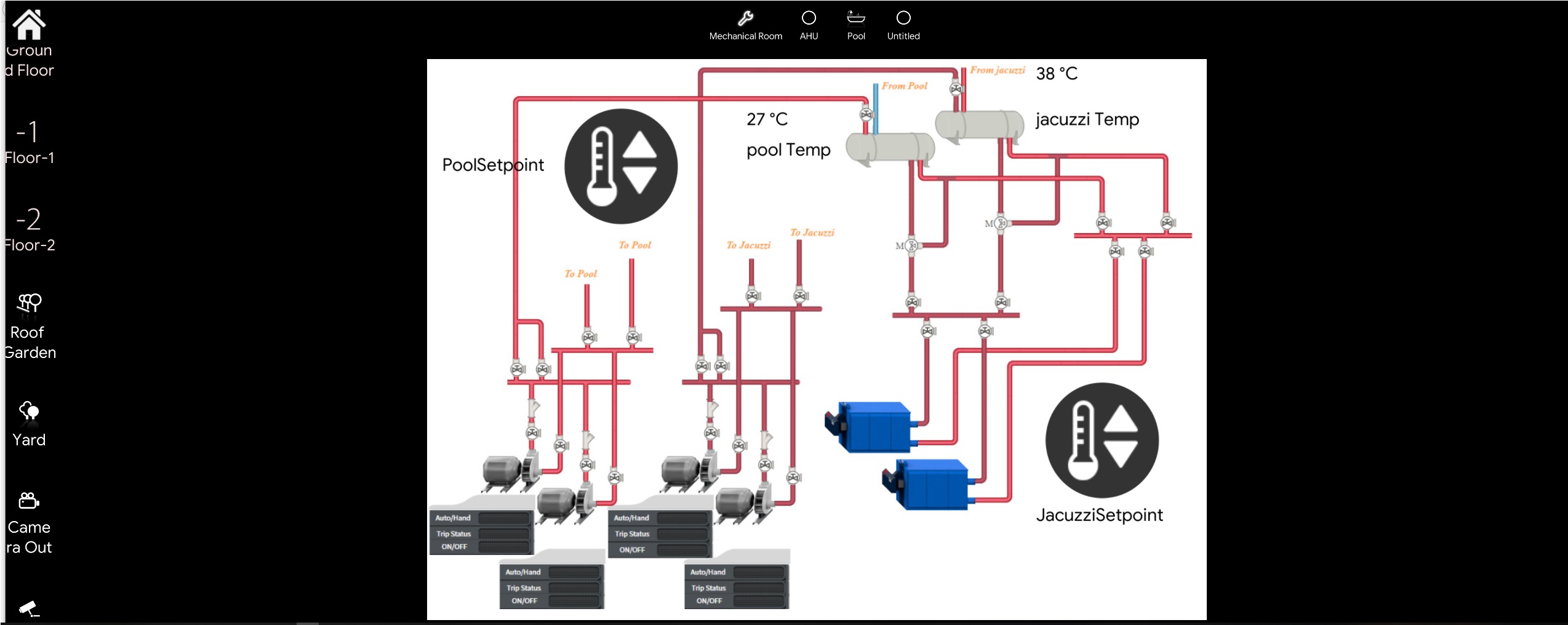

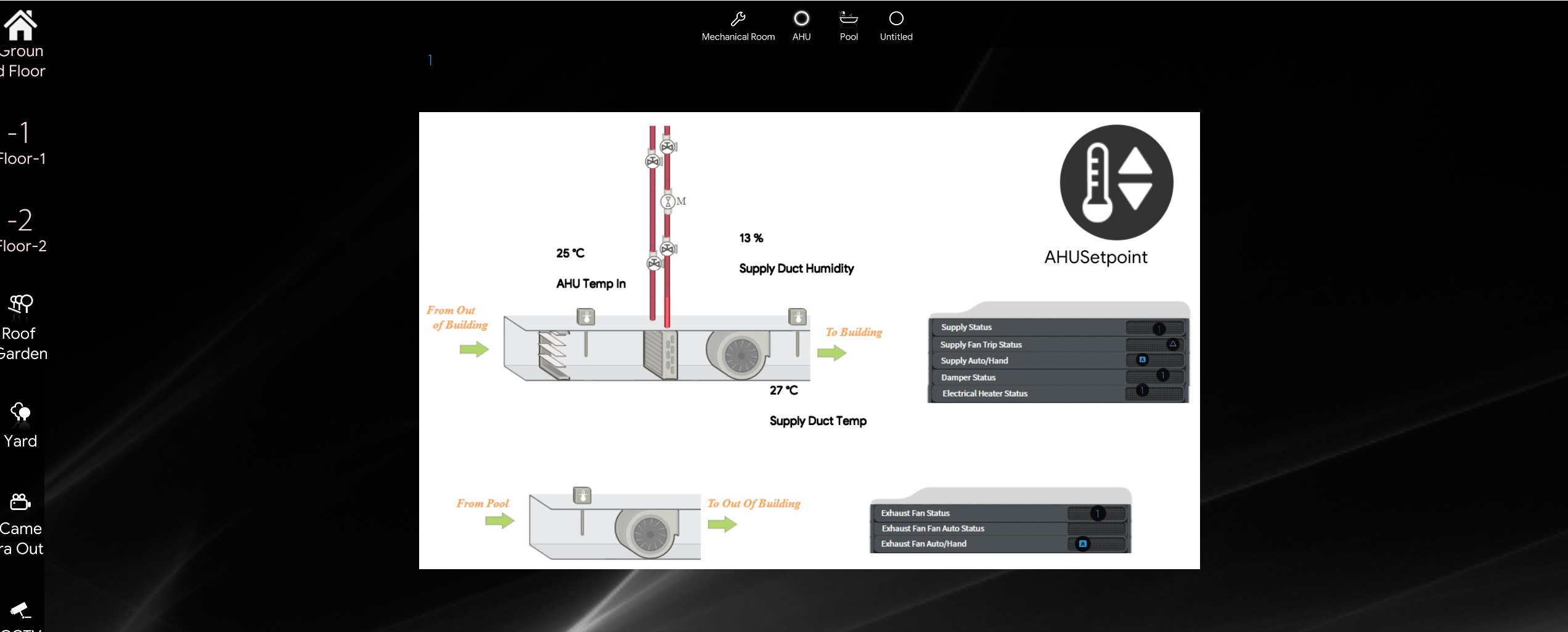

Heating, Ventilation & Air conditioning (HVAC): Central & Automatic Control , Timed Operation Modes , Automatic Occupancy Detection , Weather Dependent Control , Individual Room Control / Zone Control , Valve Drive Control / Fan Coil Control , CO2 / Humidity Measuring , Natural Ventilation , Floor Heating Control , Boiler and burner Control
Blind and Shutter Control: Individual Control , Group & Central Control , Preset Positioning , Automatic Programs , Wind and Rain Protection

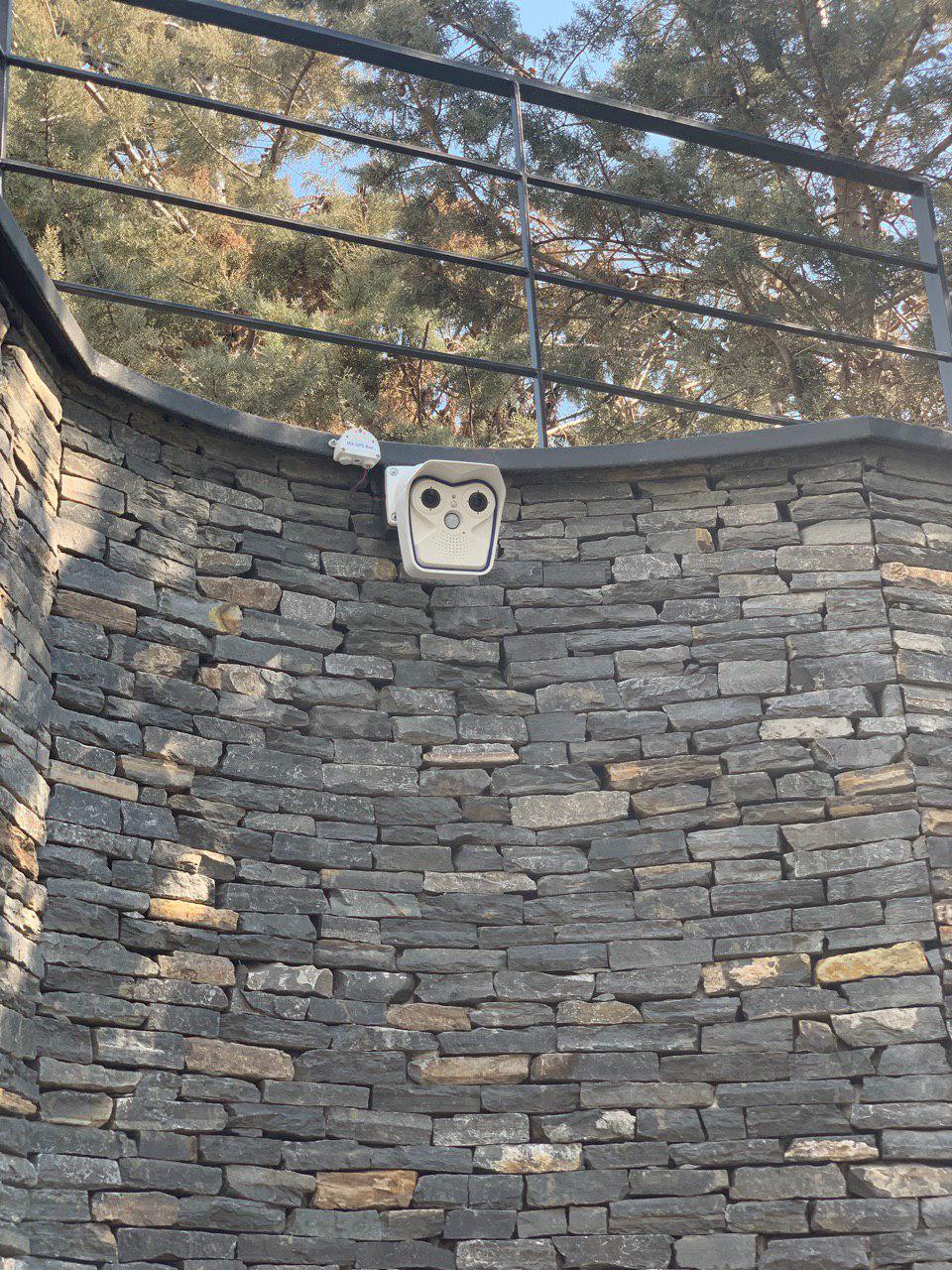

Security and Safety: Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts) , Access Control , Intrusion Detection / Alarm Systems , Emergency Lighting , Presence Simulation , Supervision (e.g. Cameras) , Interaction with HVAC/Lighting

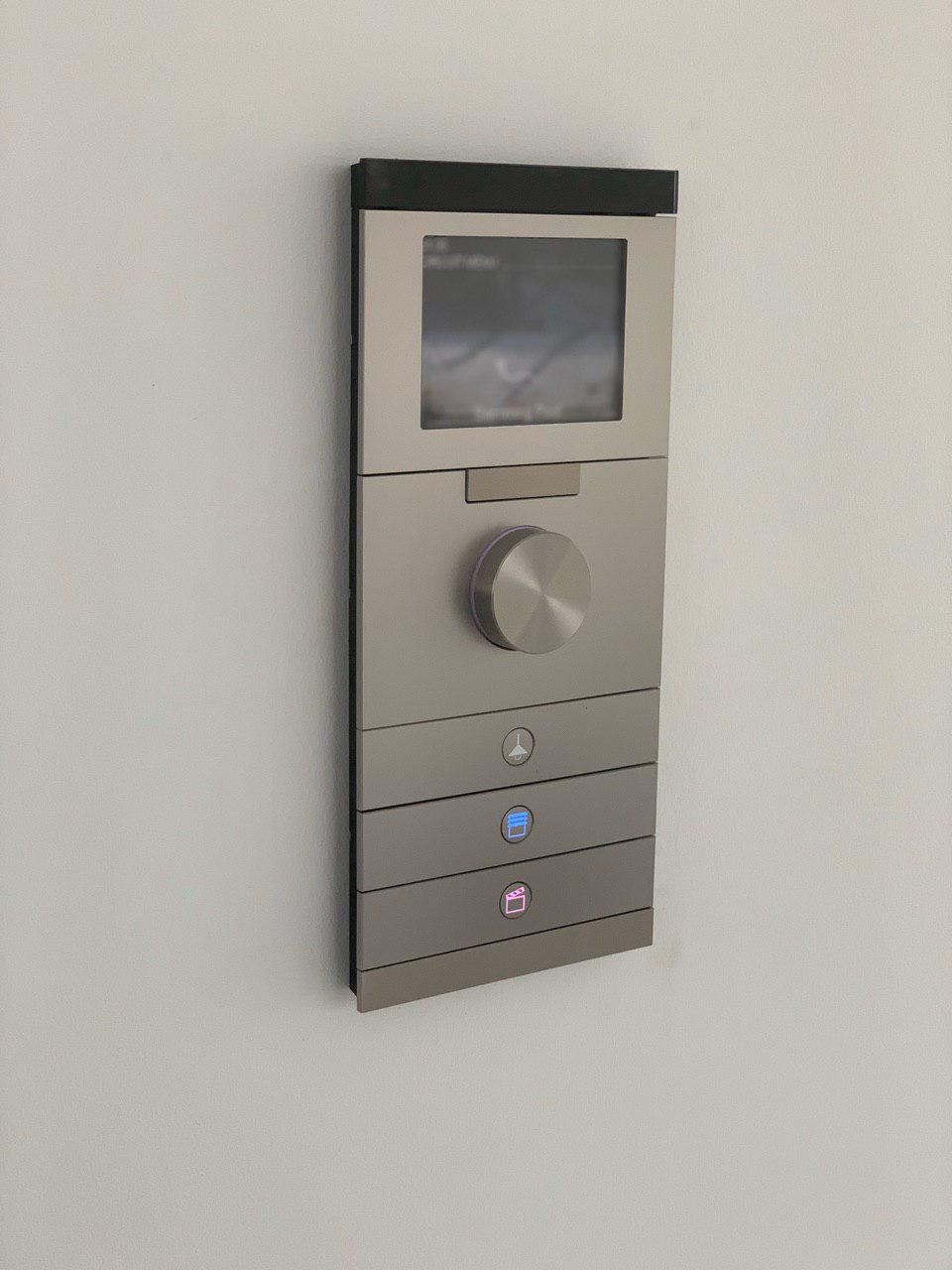

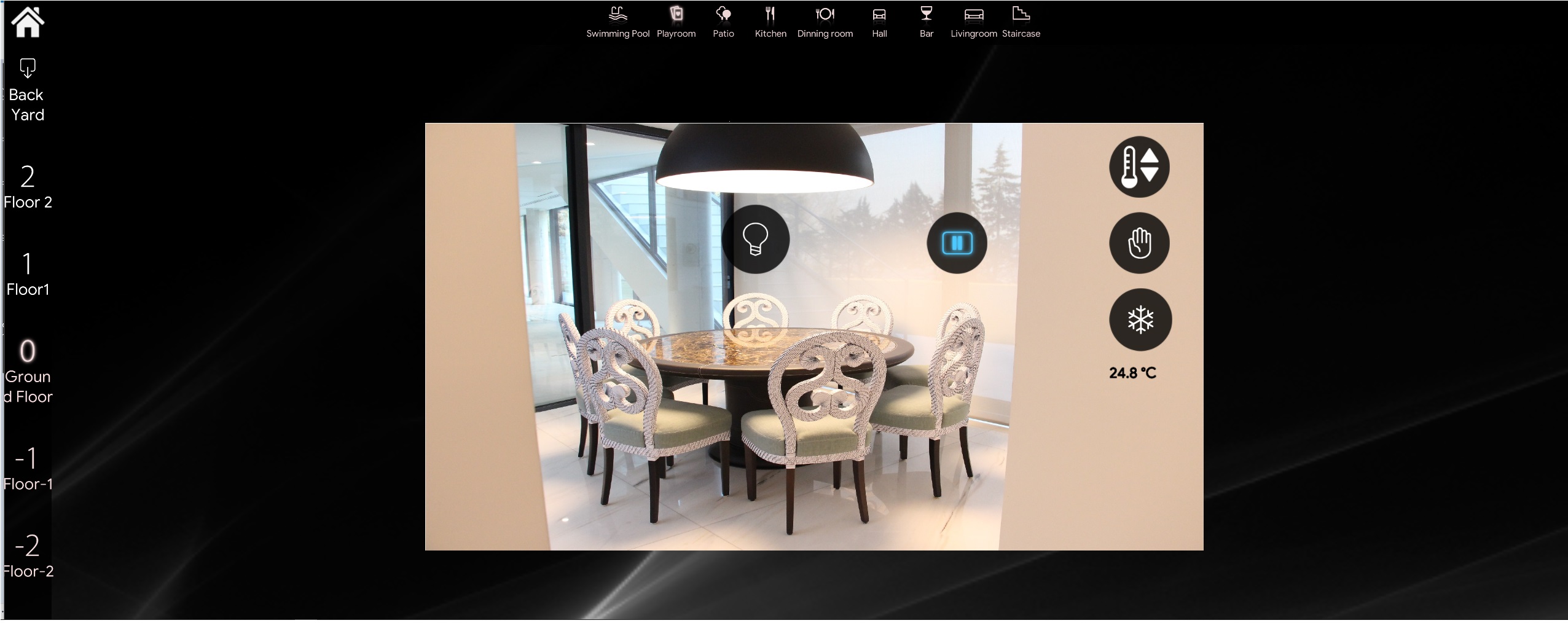

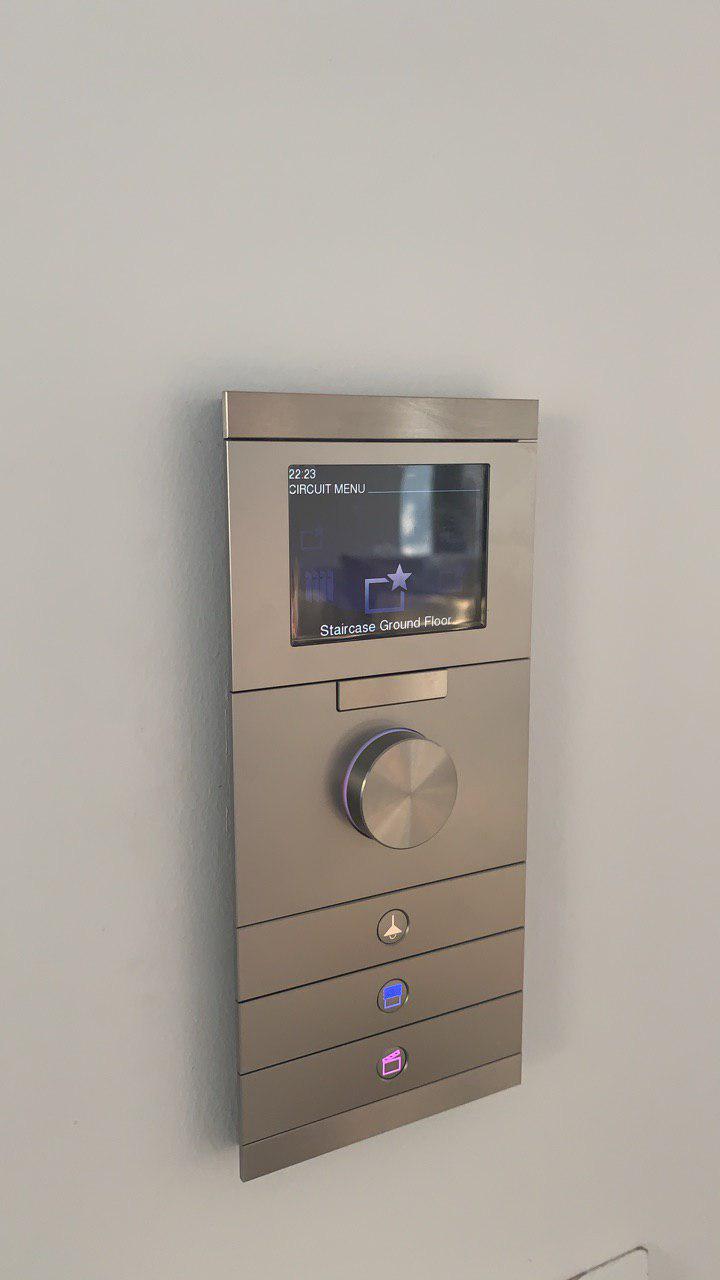

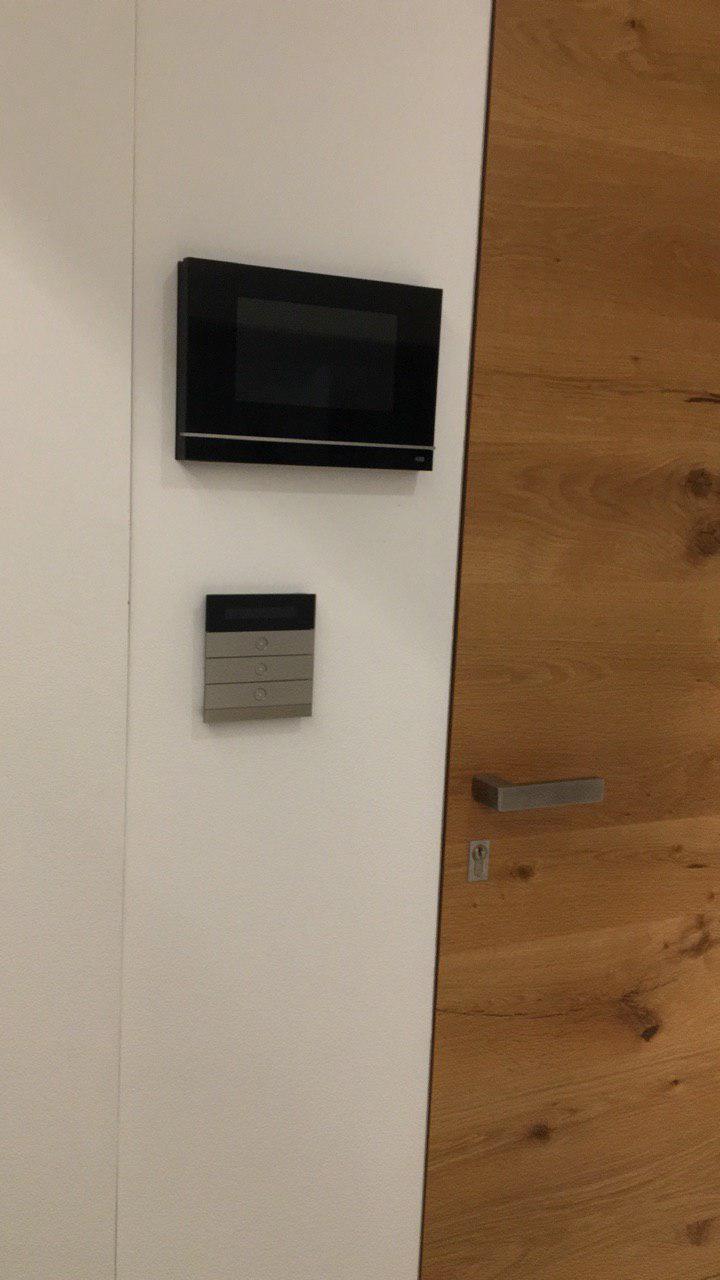

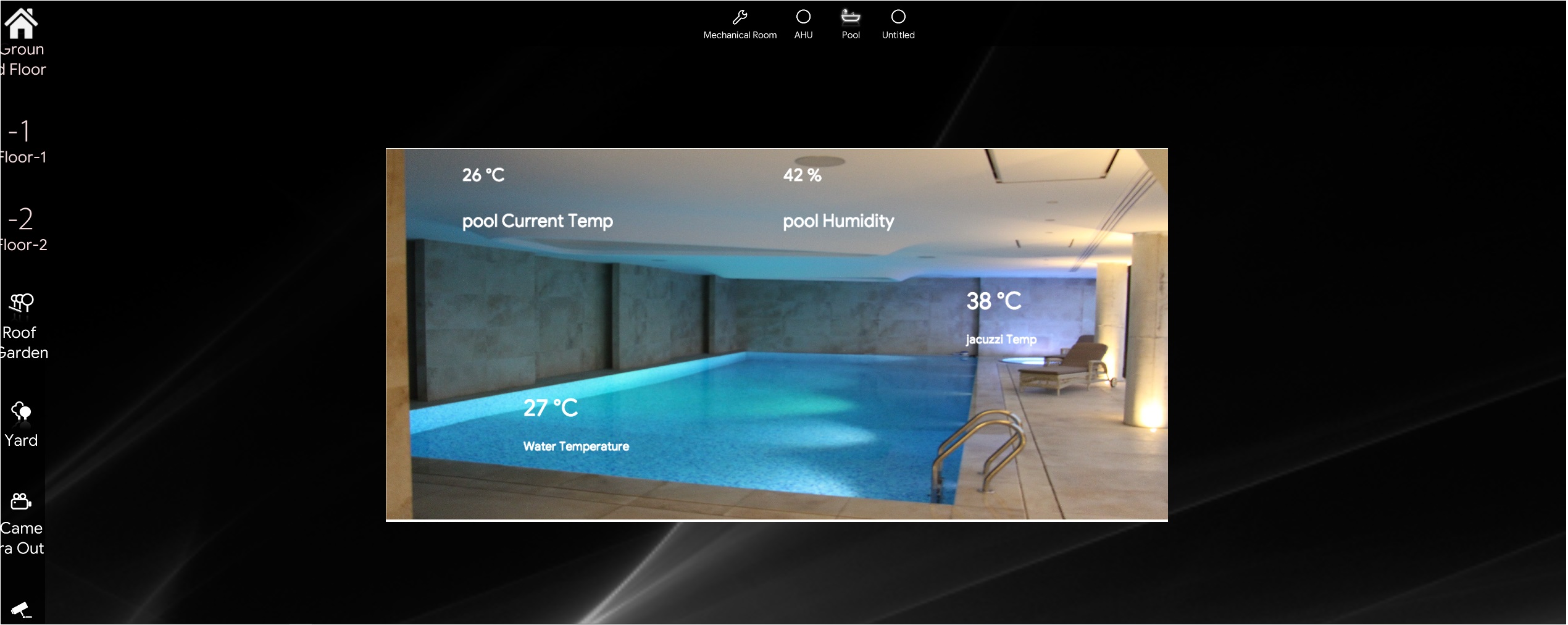

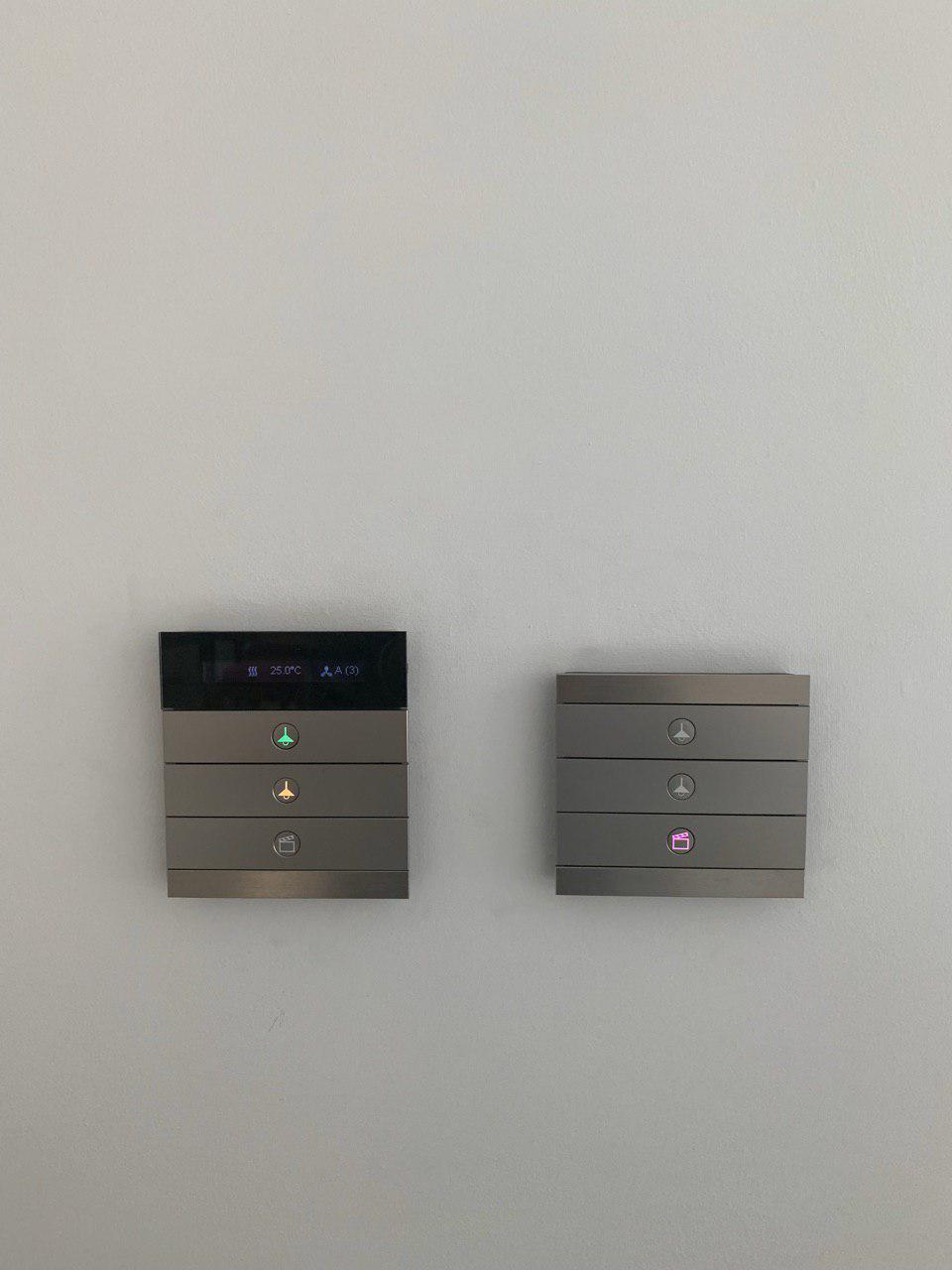

Operation and Visualisation: Switches / Push Buttons , PC Visualisation , Web Servers , Touch Panels & Display Panels , Tablets and smart phones
Automation and Remote Access: Timed Functions , Logical Functions , System Supervision , Internet Access , Remote Programming
Energy Management/Smart Metering: Visualisation , Current Detection , Fuel or Water tank level control , Peak Demand Monitoring , Load Shedding , Energy Harvesting (Avoiding use of batteries) , Use of Renewable Energies
Other: Intercom , Audio Control , Home Appliances Control , Irrigation Control , Distributed Facilities

Customer's description

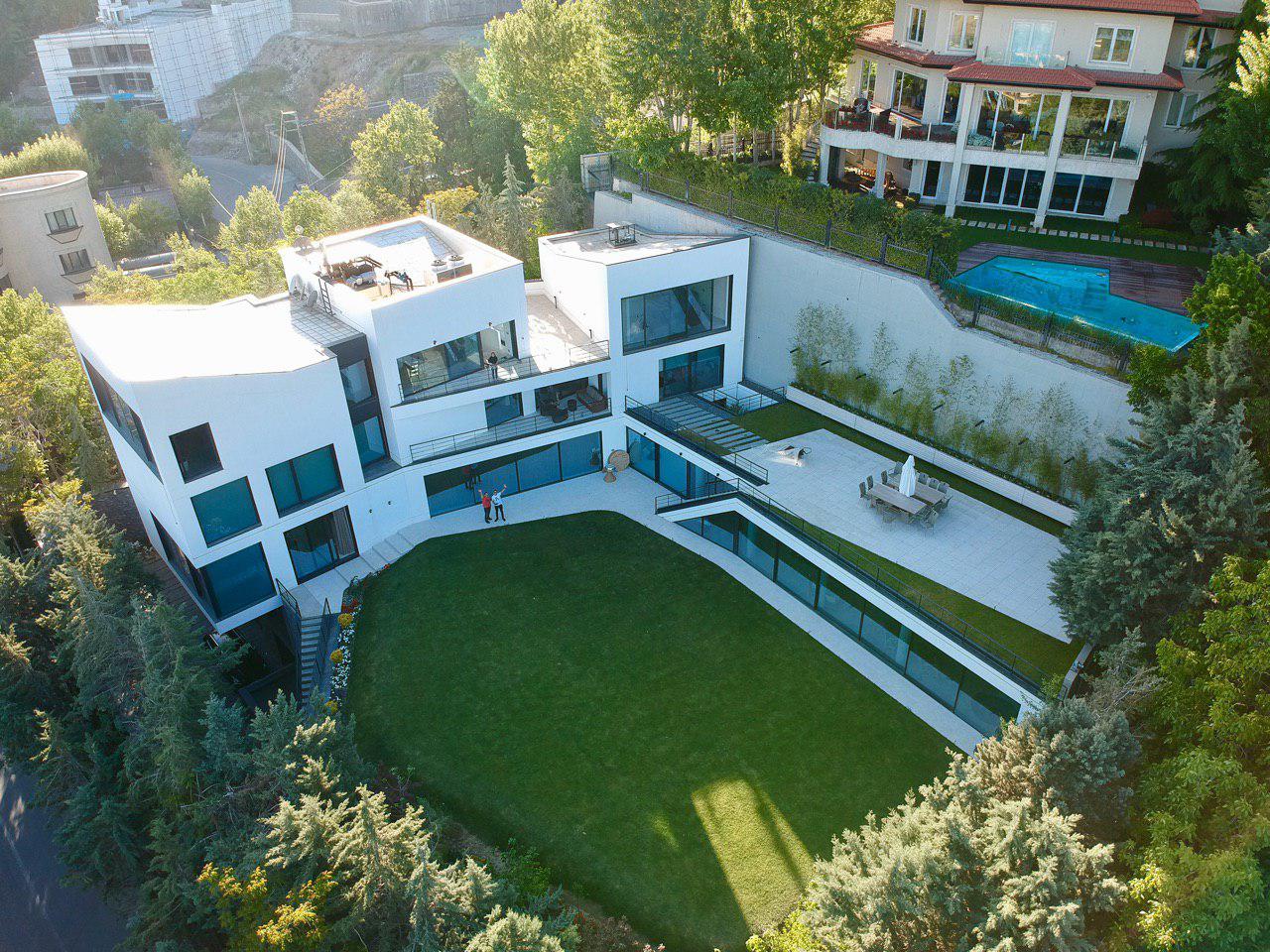

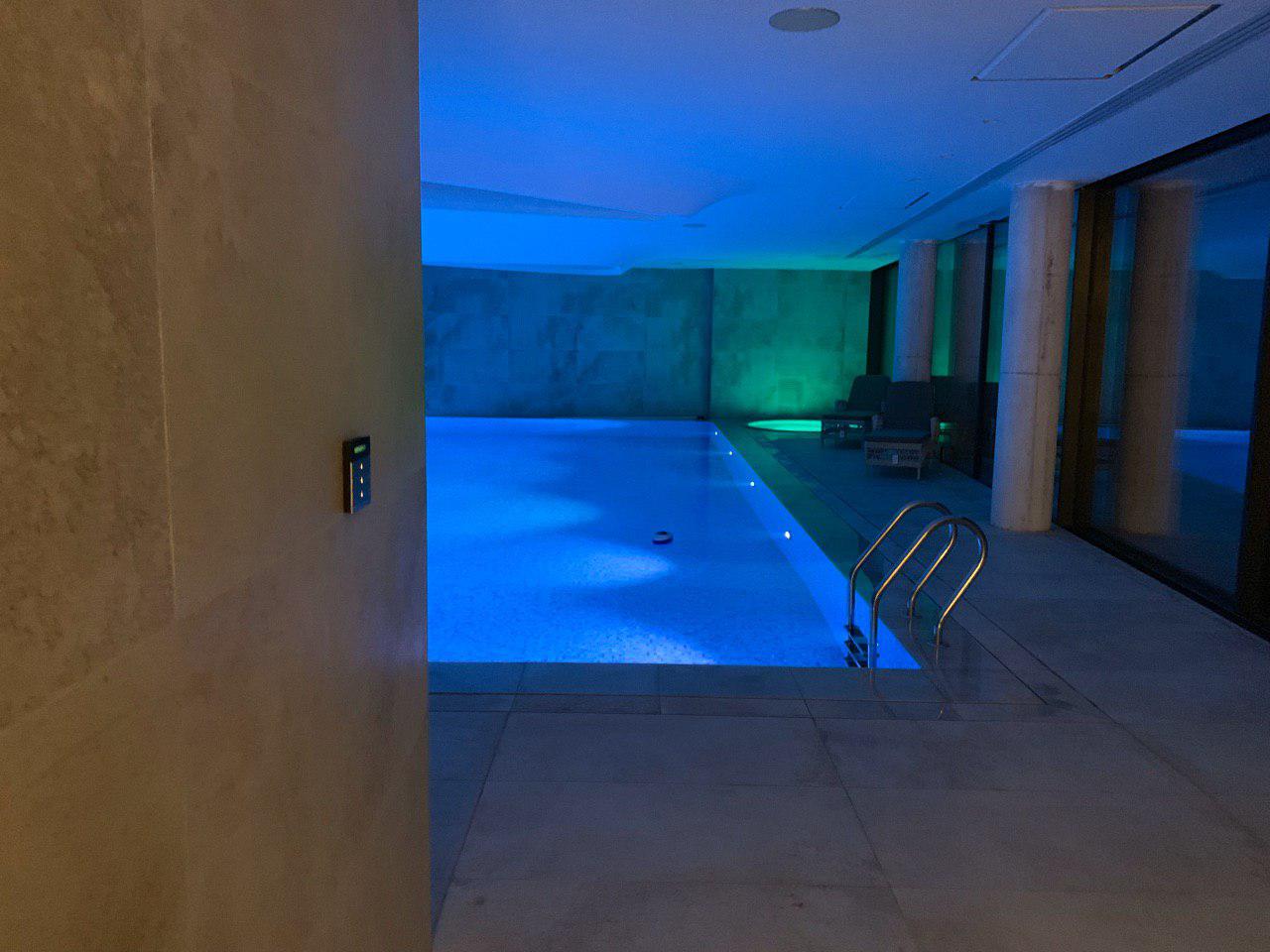

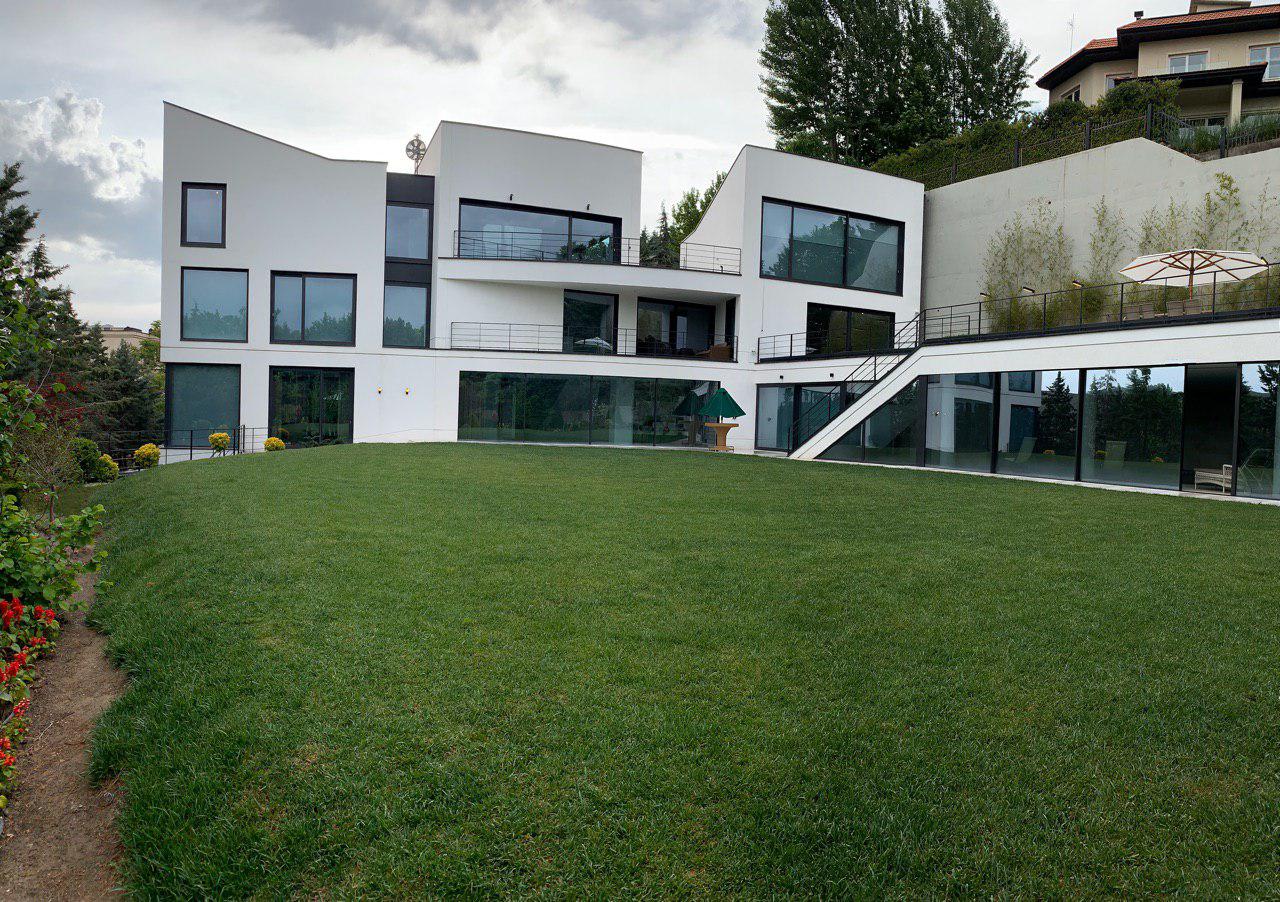

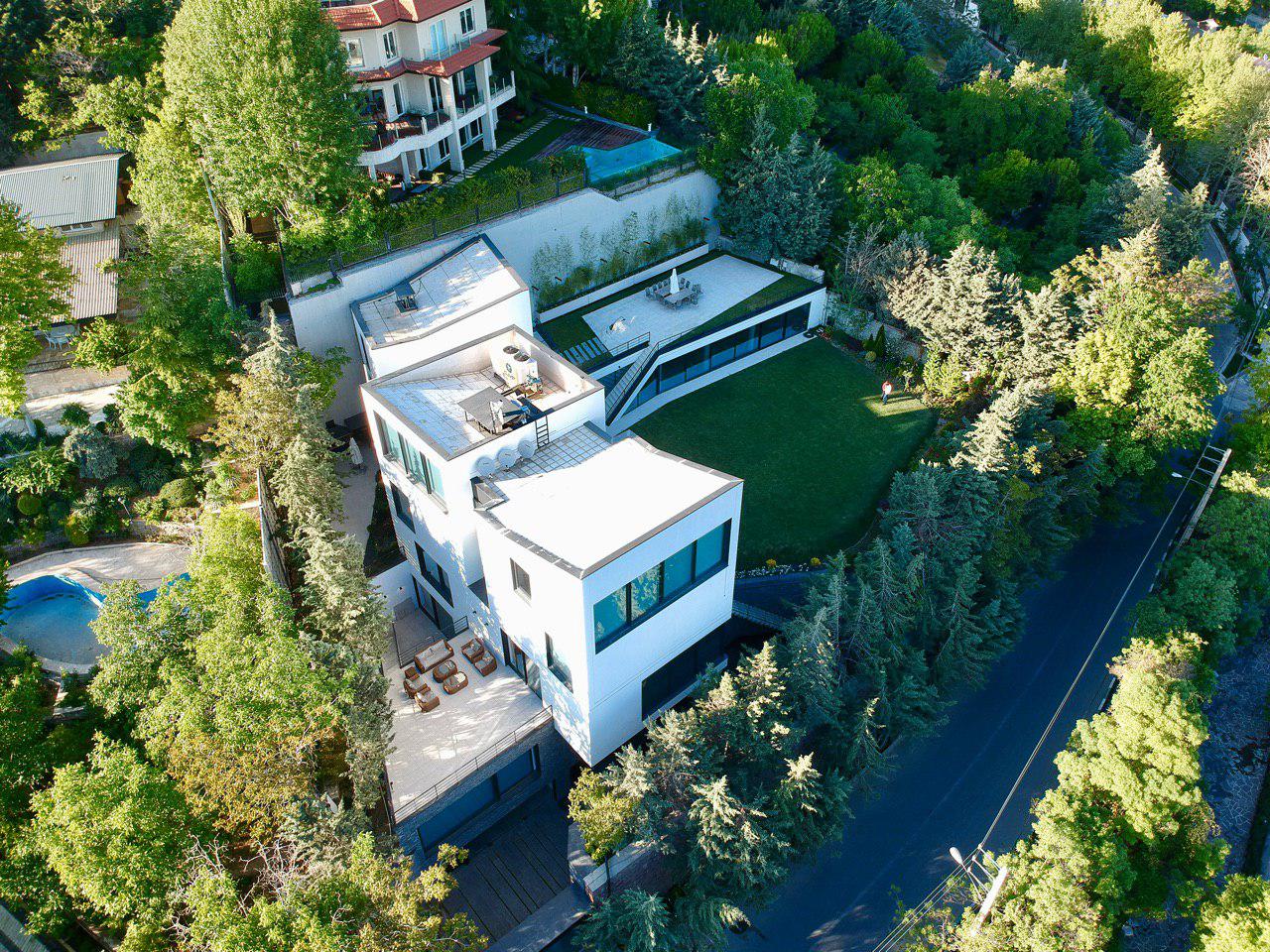

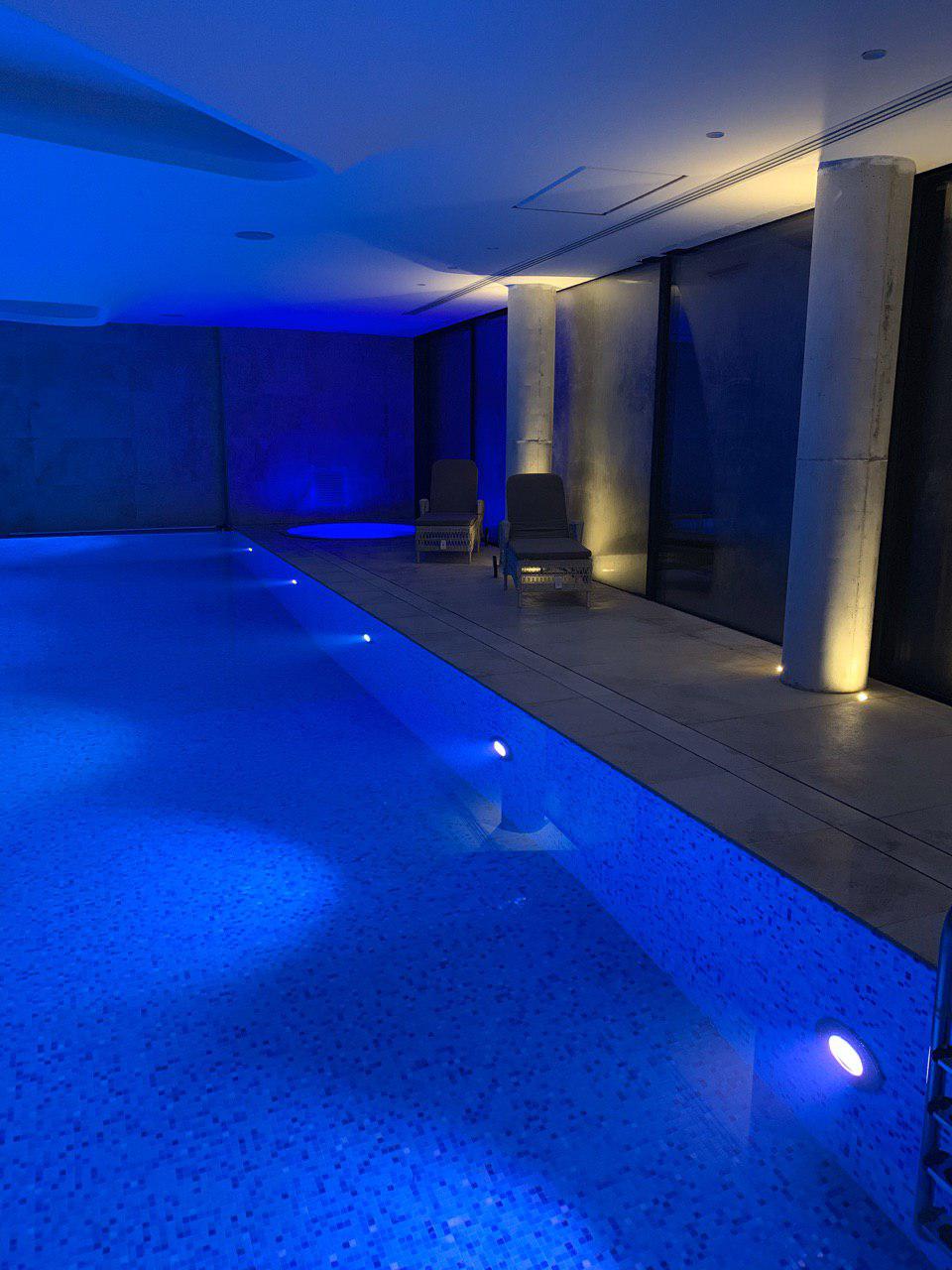

It's a green and nature-friendly Villa. it has a big yard and garden, internal space consist of 2 Livingroom, 2 TV rooms, stairs, 7corridors, 2 master bedroom and 5 bedrooms, 1guest room, Sauna and Jacuzzi, 2 Pool, 3 Kitchen, Housekeeper room, 2 restrooms, entrance, lobby, parking, closet room ,Roog Garden and garage. The key features of the project are detail design, lighting control, HVAC Control(Heating &Cooling),blinds/curtains (Somfy) and faults console. In this project we have used all systems that have knx connectivity. We've integrated all of the audio systems that are a combination of the Control 4 and B&O brands, and they are all in the building. And with the implementation of the scenario, these are clear All the lights go off as a maple in the TV scenario Scenes on the blue light up to 10% brightness The curtains come down and are ready to be watched.

Contact information

Company name	Atrina Building Automation Co. LTD
Company email	habib@atrinaco.com
Company website	http://www.atrinaco.com
Contact name	Habibollah Niknami
Contact function	System Integrator
