KNX / DALI system for CHILD HOSPITAL / AL-BASRA

Other project in ALBASRA / AL-QIBLAH, Iraq

More projects

Project category	Other
Project type	New project
Year of completion	2023
Size of project(m²)	1.001 – 5.000
Number of KNX devices used	101 – 300
KNX brands	Show/hide MDT technologies GmbH Eelectron SpA Zennio Avance y Tecnología s.l.
KNX Transmission media	Twisted pair
Man hours	1 – 100
Man power	6 – 10

Products that carry the KNX logo are a confirmation of high product quality, these products will communicate perfectly together and I didn't have to worry about working with inferior material.

Project characteristics

This diagram shows the level of energy efficiency, innovation and ease of use in the project. The main characteristic is displayed in the centre.

Applications used

The icons marked in blue are the applications used in this project via KNX.

Lighting

Heating, Ventilation & Air conditioning (HVAC)

Blind and Shutter Control

Security and Safety

Operation and Visualisation

Automation and Remote Access

Energy Management/Smart Metering

Other

Detailed description

Energy Efficiency

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation

Innovation

Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.

Ease of Use

By integrating KNX, we automatically experience a higher energy efficiency and comfort. Furthermore, by the possibility to use further devices, in order to make the usage of the project easier, we can look at further opportunity to even make the whole installation easier in usage.

Applications used

Lighting: Switching , Dimming , Light Scenes , Constant Light Control

Customer's description

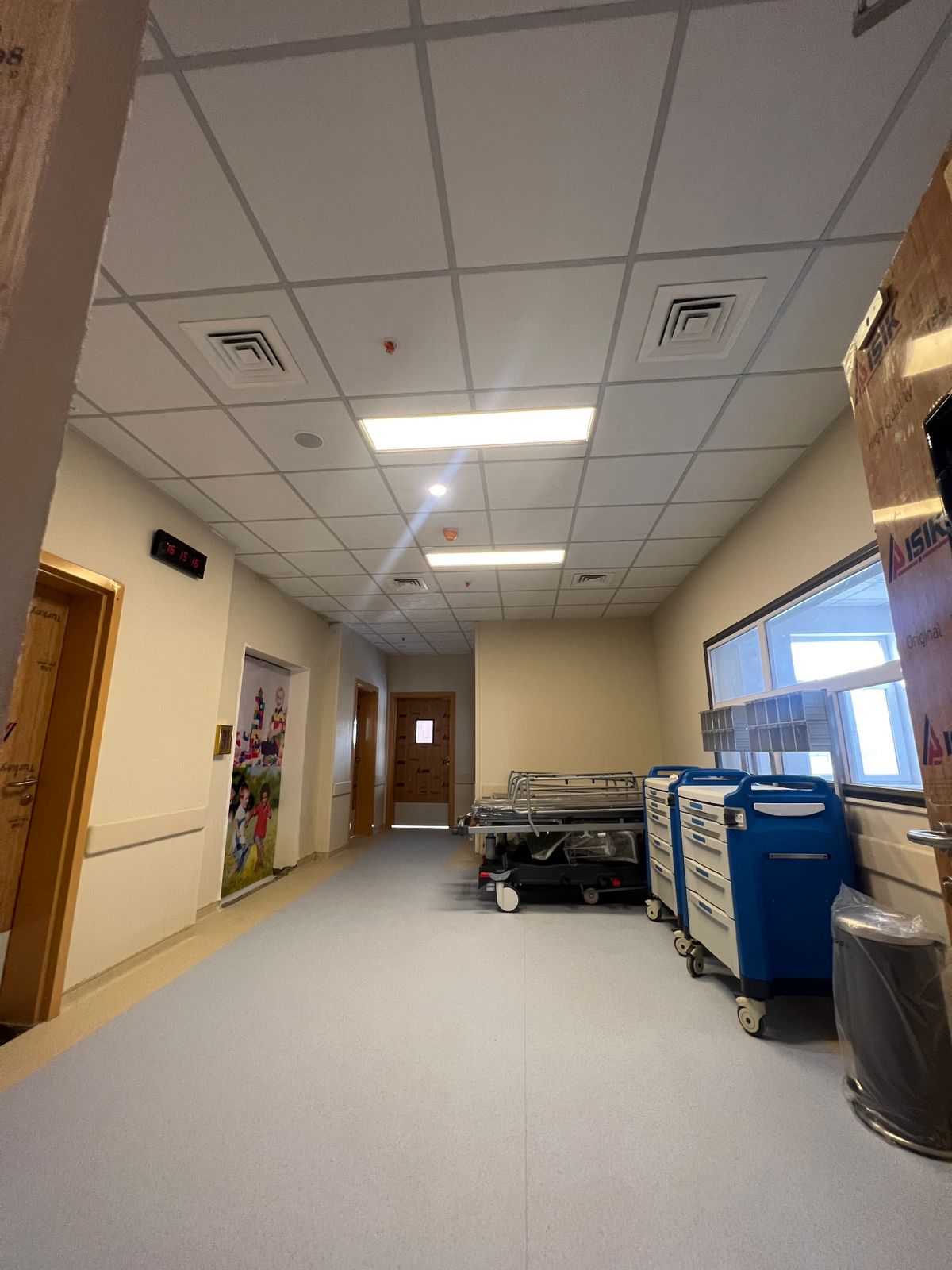

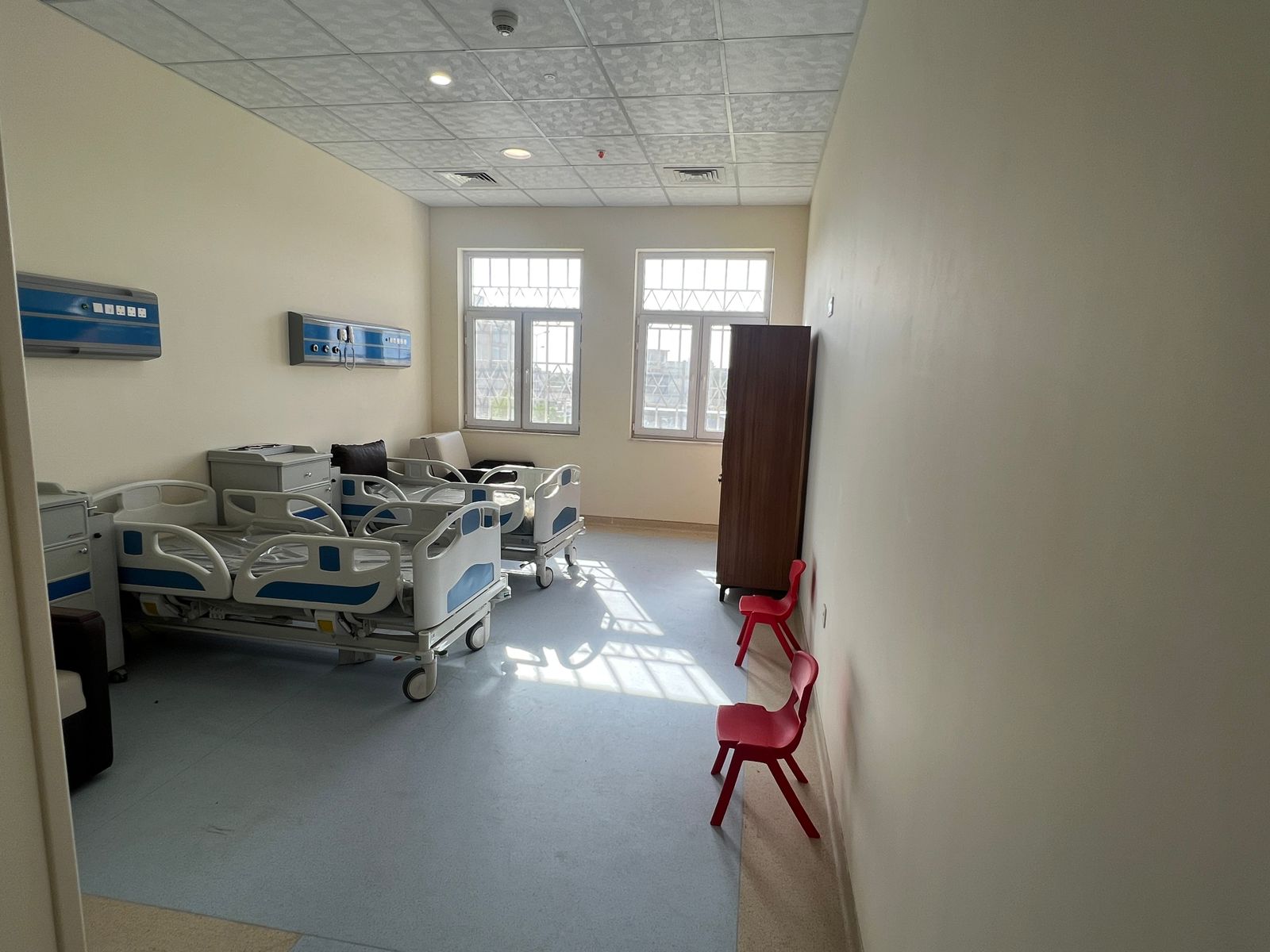

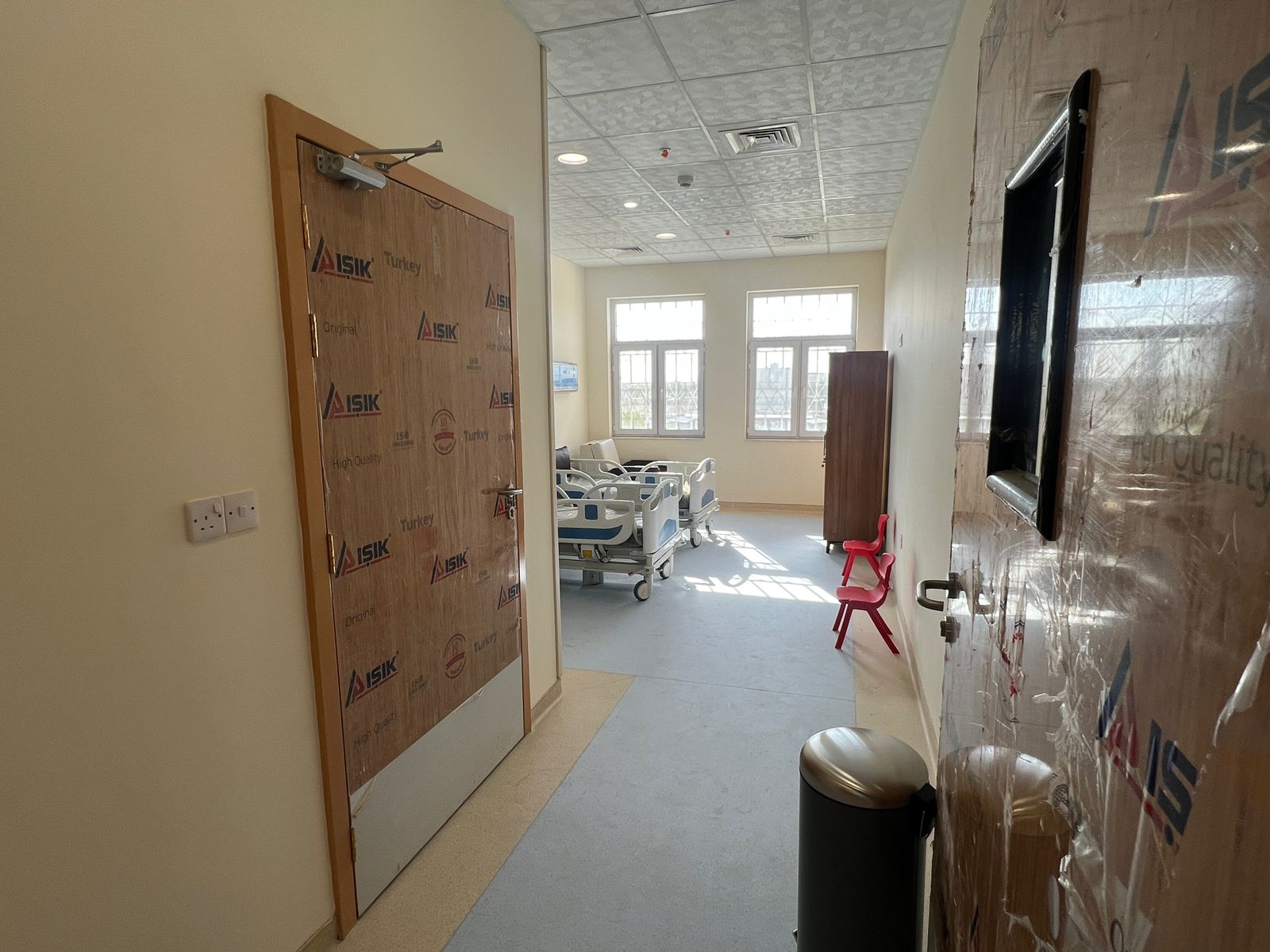

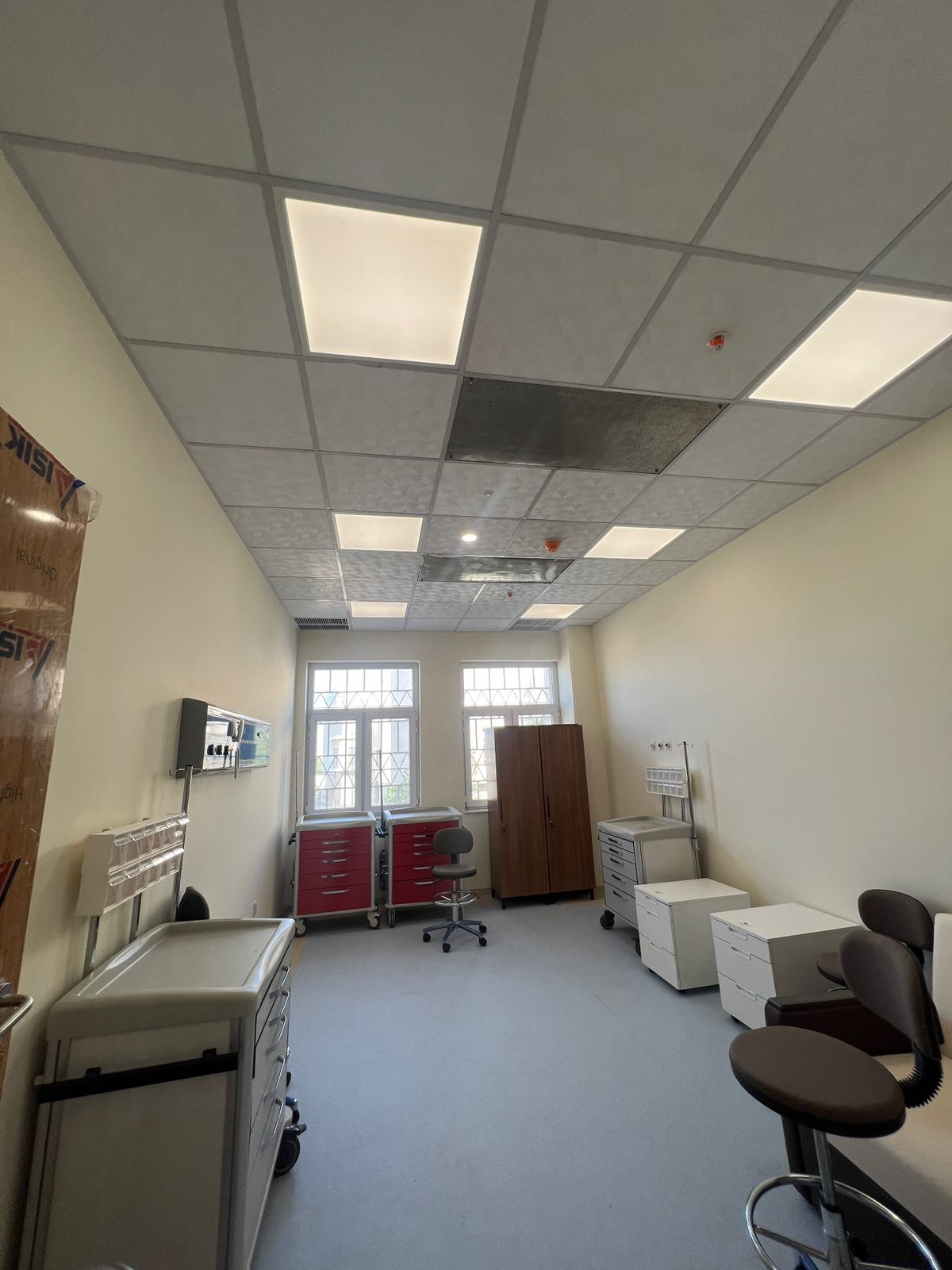

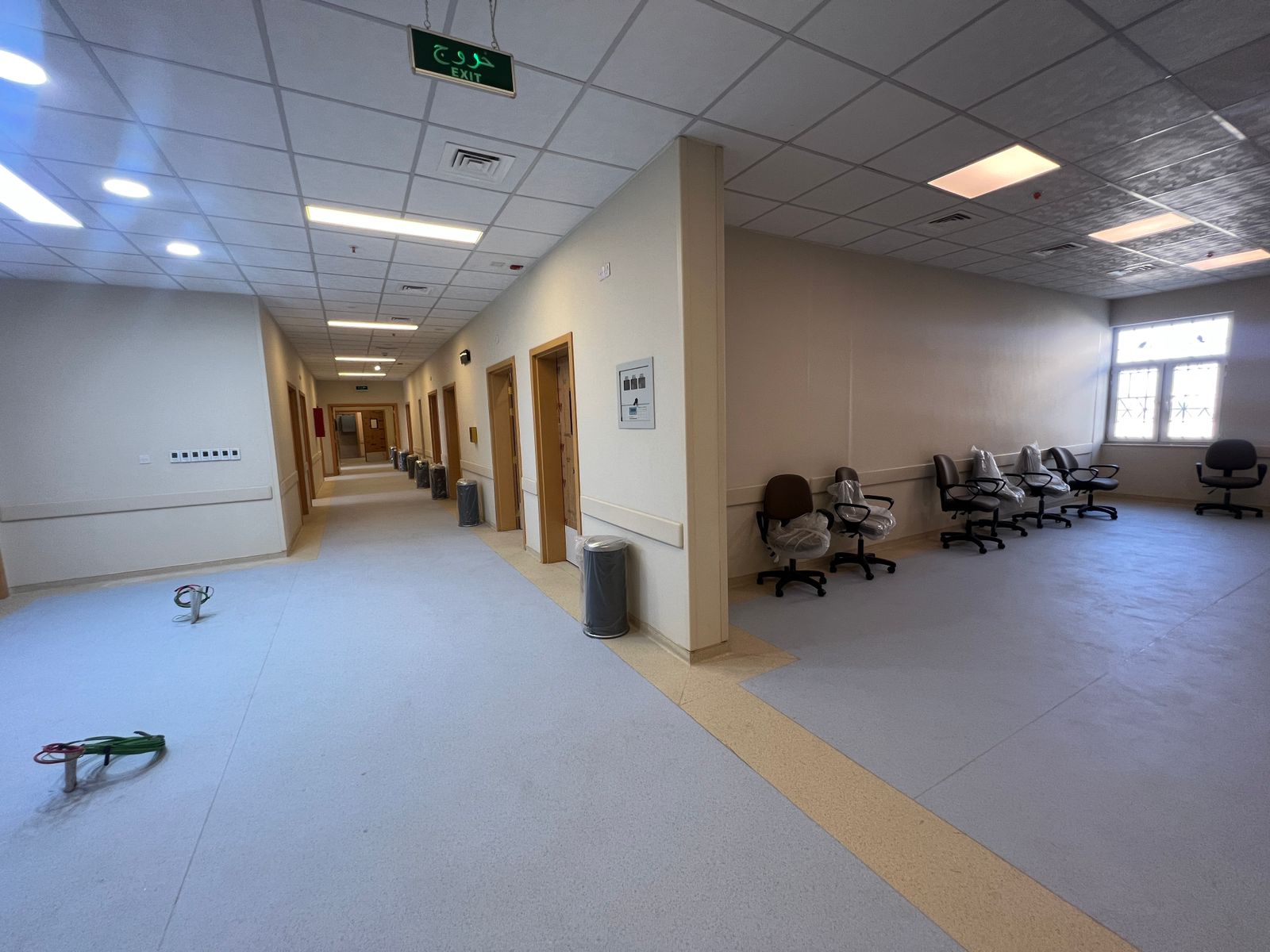

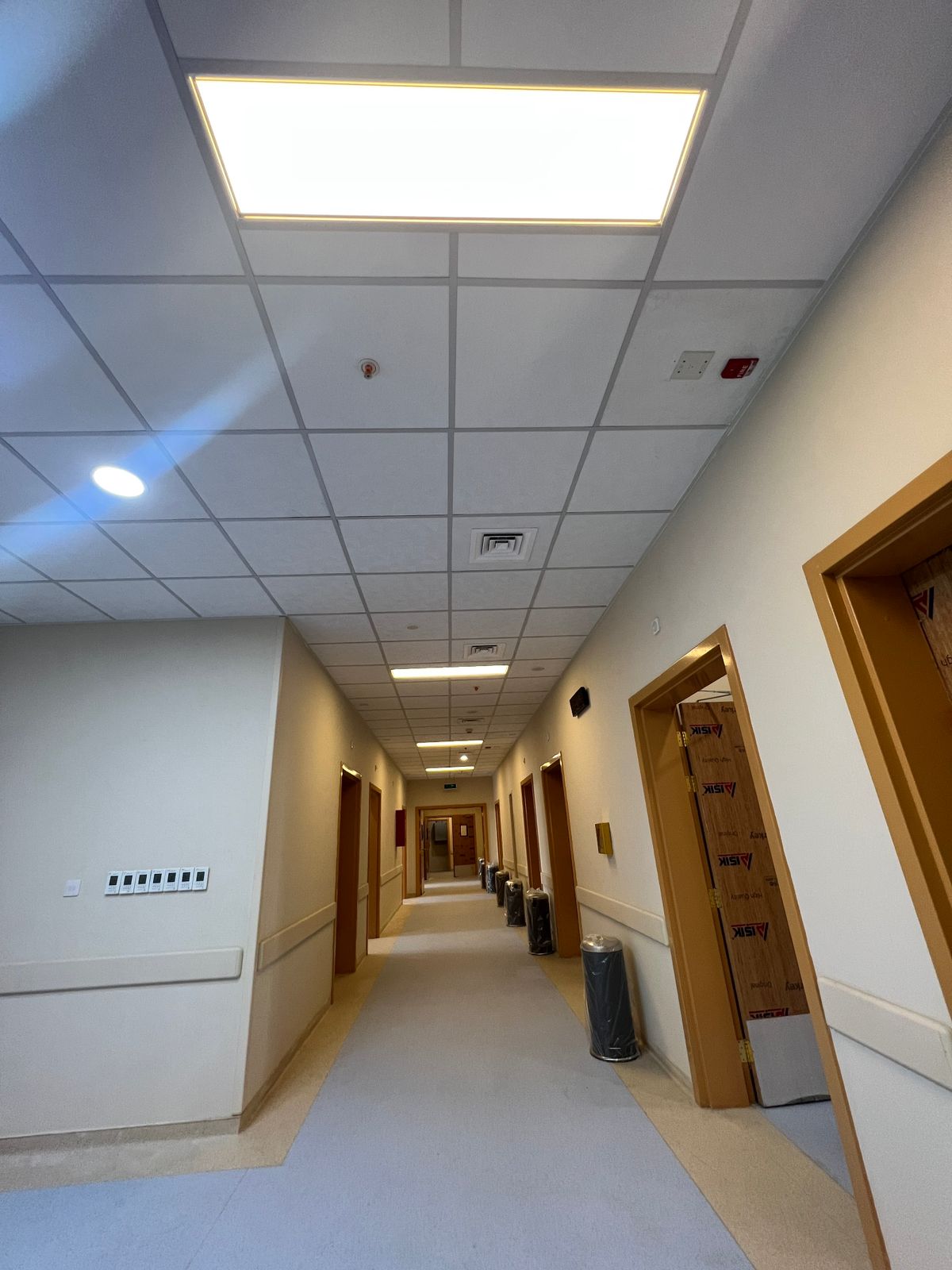

The project has 3 areas , 2 floors . We used KNX / Dali2 System to control the lighting in corridors, general areas , staff rooms , and patient rooms . All illuminance values used according to ministry of health standards /Iraq . For large areas the KNX system is the best way to make the controlling system is applicable . In this project used the following components: - All motion and lux KNX sensors are from ZENNIO . -All KNX/Dali2 gateways are from E-ELECTRON -System devices Power supplies and USB interfaces are from MDT . - KNX cable is from E-ELECTRON .
