Corona Solution

Commercial project in Düsseldorf, Germany

Project category Commercial
Project type New project
Year of completion 2022
Size of project(m2) 101 – 500
Number of KNX devices used 101 – 300
KNX brands Show/hide
KNX Transmission media
Twisted pair
Man hours 1.001 – 2.000
Man power 1 – 5
Products that carry the KNX logo are a confirmation of high product quality, these products will communicate perfectly together and I didn't have to worry about working with inferior material.

Project characteristics

This diagram shows the level of energy efficiency, innovation and ease of use in the project. The main characteristic is displayed in the centre.

Applications used

The icons marked in blue are the applications used in this project via KNX.

Heating, Ventilation & Air conditioning (HVAC)
Blind and Shutter Control
Security and Safety
Operation and Visualisation
Automation and Remote Access
Energy Management/Smart Metering

Detailed description

Energy Efficiency

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation


Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.

Ease of Use

By integrating KNX, we automatically experience a higher energy efficiency and comfort. Furthermore, by the possibility to use further devices, in order to make the usage of the project easier, we can look at further opportunity to even make the whole installation easier in usage.

Applications used

  • Lighting: Switching , Dimming , Light Scenes , Timed Control , Automatic Occupancy Detection , Constant Light Control , Lighting Colour Control
  • Heating, Ventilation & Air conditioning (HVAC): Central & Automatic Control , Timed Operation Modes , Automatic Occupancy Detection , Weather Dependent Control , Individual Room Control / Zone Control , Valve Drive Control / Fan Coil Control , CO2 / Humidity Measuring , Natural Ventilation , Boiler and burner Control
  • Blind and Shutter Control: Individual Control , Group & Central Control , Preset Positioning , Automatic Programs , Wind and Rain Protection , Sun Tracing (interaction with HVAC / lighting)
  • Security and Safety: Smoke/Fire Detection , Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts) , Access Control , Intrusion Detection / Alarm Systems , Emergency Lighting , Presence Simulation , Supervision (e.g. Cameras) , Interaction with HVAC/Lighting
  • Operation and Visualisation: Switches / Push Buttons , Web Servers , Touch Panels & Display Panels , Tablets and smart phones
  • Automation and Remote Access: Timed Functions , Logical Functions , System Supervision , Internet Access , Remote Programming , Messaging (e.g. SMS)
  • Energy Management/Smart Metering: Metering , Data Logging , Visualisation , Current Detection , Fuel or Water tank level control , Peak Demand Monitoring , Load Shedding , Energy Harvesting (Avoiding use of batteries)
  • Other: Audio Control , Video Control , Irrigation Control , Distributed Facilities

Customer's description

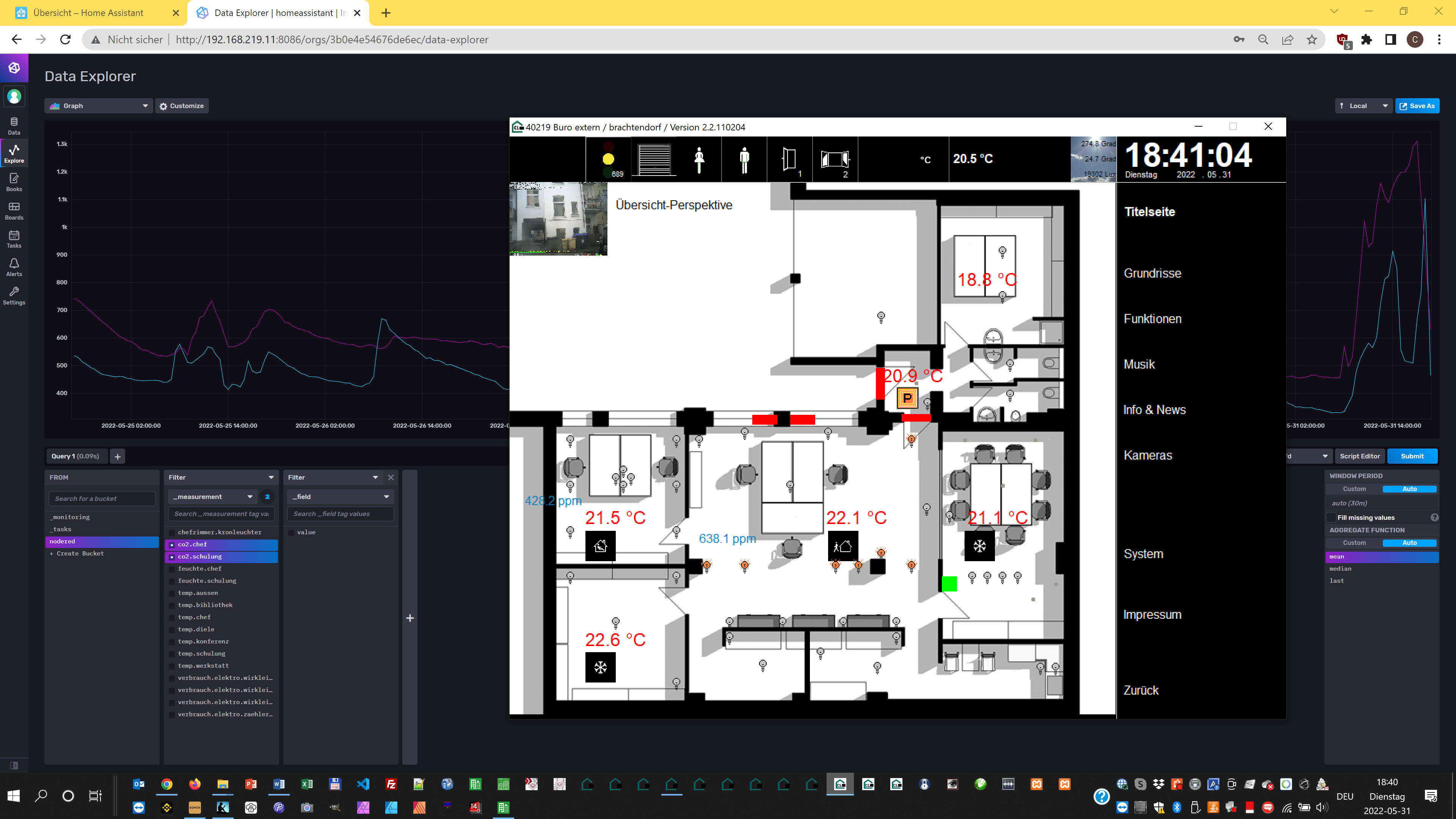

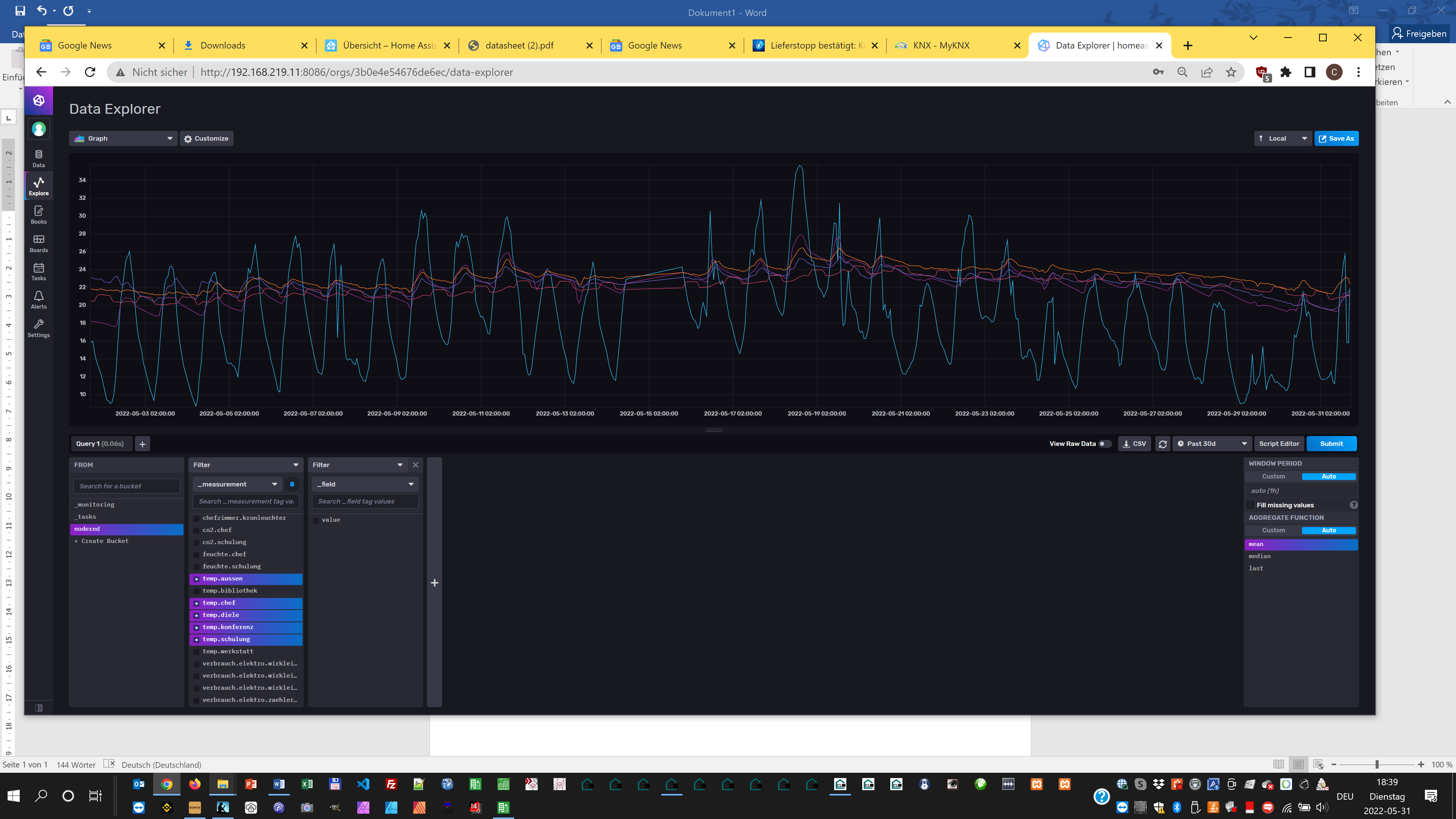

Im Jahr 2020 konnten wir wegen Corona keine Schulungen durchführen. Als im Jahr 2021 dann wieder Schulungen möglich waren, bei denen teilweise einige Auflagen wie Abstandsregeln u.ä. zu beachten waren, entschieden wir, dass wir nun nur noch einen Teilnehmer an einen Schulungsplatz platzieren werden. Ausserdem wollten wir unseren Teilnehmern auch die Möglichkeit aufzeigen, inwieweit mit KNX eine Corona-optimierte Lüftung realisiert werden kann. Wir haben uns entschieden in mehreren Räumen unserer Schulungsstätte CO2 Sensoren zu installieren, die wir als Systemintegratoren bereits in vielen Konferenzräumen eingesetzt hatten. Damit war es möglich, die CO2 Sättigung in diesen Räumen zu beobachten und mittels Grenzwerten auch mit Alarmen zu versehen. . In den Wintermonaten funktionierte dies hervorragend und wir konnten den Teilnehmern so in Aktion die Vorteile des KNX-Installationsbussystem aufzeigen.
