Vivienda PicosdeUrbión

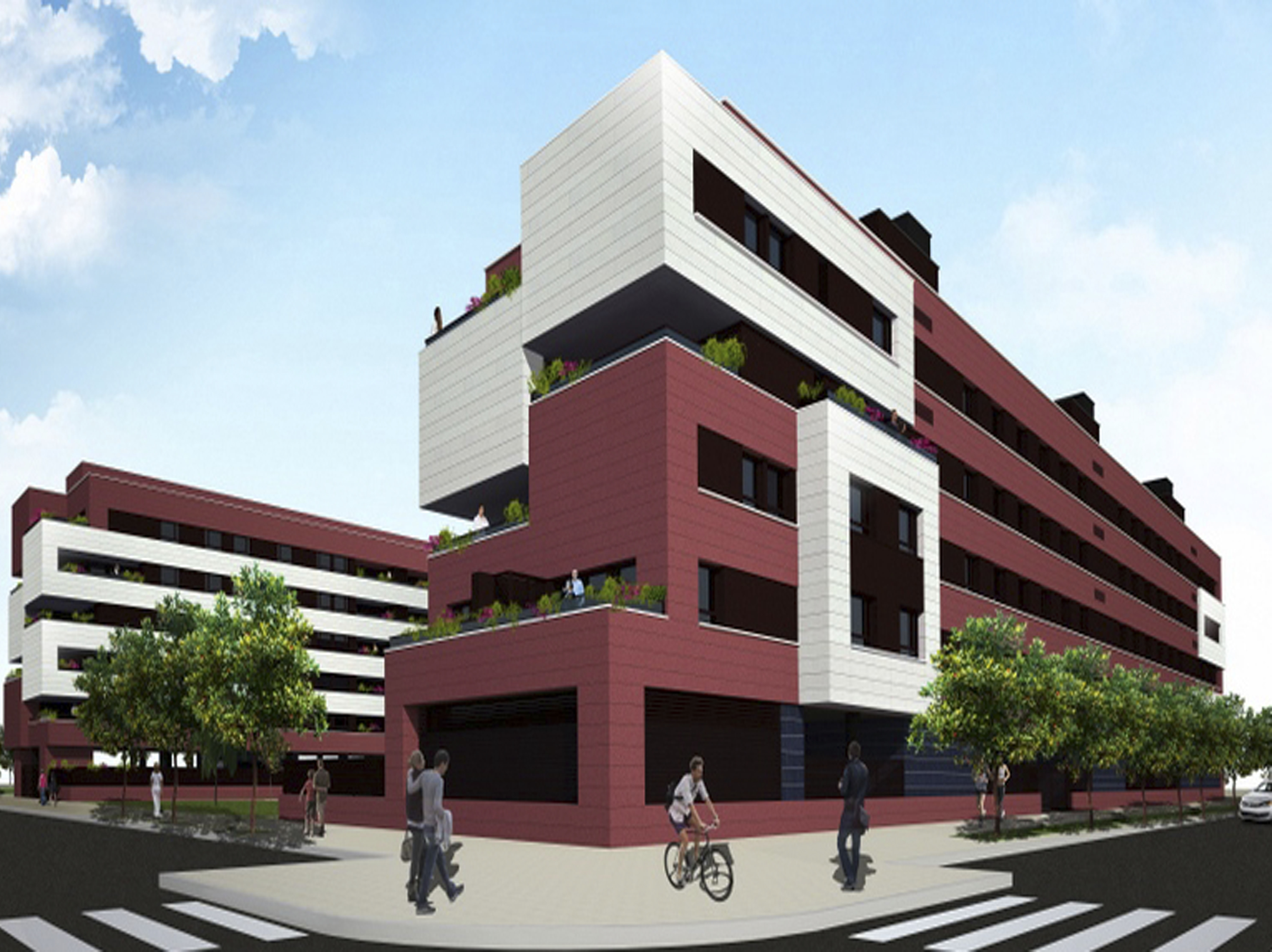

Residential project in Logroño, Spain

Project category Residential
Project type New project
Year of completion 2021
Size of project(m2) 1 – 100
Number of KNX devices used 26 – 100
KNX brands Show/hide
KNX Transmission media
Twisted pair
Man hours 101 – 250
Man power 1 – 5
Products that carry the KNX logo are a confirmation of high product quality, these products will communicate perfectly together and I didn't have to worry about working with inferior material.

Project characteristics

This diagram shows the level of energy efficiency, innovation and ease of use in the project. The main characteristic is displayed in the centre.

Applications used

The icons marked in blue are the applications used in this project via KNX.

Heating, Ventilation & Air conditioning (HVAC)
Blind and Shutter Control
Security and Safety
Operation and Visualisation
Automation and Remote Access
Energy Management/Smart Metering

Detailed description

Energy Efficiency

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation


Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.

Ease of Use

By integrating KNX, we automatically experience a higher energy efficiency and comfort. Furthermore, by the possibility to use further devices, in order to make the usage of the project easier, we can look at further opportunity to even make the whole installation easier in usage.

Applications used

  • Heating, Ventilation & Air conditioning (HVAC): Central & Automatic Control , Timed Operation Modes , Individual Room Control / Zone Control , Valve Drive Control / Fan Coil Control , CO2 / Humidity Measuring , Floor Heating Control , Boiler and burner Control
  • Blind and Shutter Control: Individual Control , Group & Central Control , Preset Positioning , Automatic Programs
  • Security and Safety: Intrusion Detection / Alarm Systems
  • Operation and Visualisation: Switches / Push Buttons , PC Visualisation , Web Servers , Touch Panels & Display Panels , Tablets and smart phones
  • Automation and Remote Access: Logical Functions , System Supervision , Internet Access , Remote Programming , Messaging (e.g. SMS)
  • Energy Management/Smart Metering: Data Logging , Visualisation , Peak Demand Monitoring , Use of Renewable Energies
  • Other: Audio Control , Video Control

Customer's description

Control y regulación de una vivienda, control de suelo radiante desde caldera central y suelo refrescante desde aerotermia individual, separación de instalaciones mediante válvulas de 3 vías estanca, control individual de todas las zonas mediante termostatos individuales, estos termostato están en las pantallas de control que también las utilizamos para controlar las persianas eléctricas de cada estancia. Disponemos de control y recuperación de calor mediante un recuperador de doble flujo WOLF 200m3 con un rendimiento del 98%. Toda la vivienda se controla desde una pantalla central, también utilizada videoportero. La vivienda dispone de un pequeño BMS (LogicMachine) para tener una pequeña visualización para ver en tiempo real que es lo que esta pasando en la vivienda, también registramos todas las temperaturas, la humedad y el CO2, desde este BMS controlamos las alarmas.
